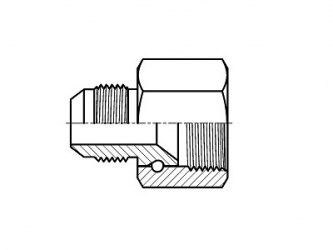

Reducering UNF JIC UF / UNF JIC IR



Reducering UNF JIC UF / UNF JIC IR

Tätning

JIC 37° Kona

Material

Stål

Beskrivning

Rak adapter, fast-rörlig mutter

ArtikelnrBenämningBeteckningNV
12-42900907Adapt 4290-09-07JIC KOR 10 UF x 6 IR17mm
12-42900908Adapt 4290-09-08JIC KOR 10 UF x 8 IR17mm
12-42901207Adapt 4290-12-07JIC KOR 12 UF x 6 IR22mm
12-42901208Adapt 4290-12-08JIC KOR 12 UF x 8 IR22mm
12-42901209Adapt 4290-12-09JIC KOR 12 UF x 10 IR22mm
12-42901407Adapt 4290-14-07JIC KOR 14, 15, 16 UF x 6 IR27mm
12-42901409Adapt 4290-14-09JIC KOR 14, 15, 16 UF x 10 IR27mm
12-42901412Adapt 4290-14-12JIC KOR 14, 15, 16 UF x 12 IR27mm
12-42901708Adapt 4290-17-08JIC KOR 18,20 UF x 8 IR32mm
12-42901709Adapt 4290-17-09JIC KOR 18, 20 UF x 10 IR32mm
12-42901712Adapt 4290-17-12JIC KOR 18, 20 UF x 12 IR32mm
12-42901714Adapt 4290-17-14JIC KOR 18, 20 UF x 14, 15, 16 IR32mm
12-42902114Adapt 4290-21-14JIC KOR 25 UF x 14, 15, 16 IR38mm
12-42902117Adapt 4290-21-17JIC KOR 25 UF x 18, 20 IR38mm
12-42902614Adapt 4290-26-14JIC KOR 30,32 UF x 14, 15, 16 IR50mm
12-42902617Adapt 4290-26-17JIC KOR 30, 32 UF x 18, 20 IR50mm
12-42902621Adapt 4290-26-21JIC KOR 30, 32 UF x 25 IR50mm
12-42903017Adapt 4290-30-17JIC KOR 38 UF x 18, 20 IR57mm
12-42903026Adapt 4290-30-26JIC KOR 35 UF x 30, 32 IR57mm
