Tätning
60° kona - JIC 37° kona
Material
Stål
Beskrivning

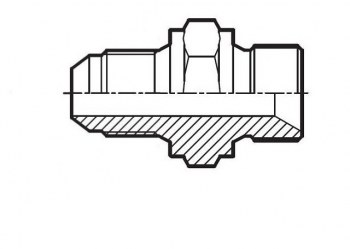

Rak nippel, fast-fast
| artikelnr | Benämning | Beteckning | Anslutning |
| 12-41200207 | Adapt 4120-02-07 | R 1/8" UF x JIC 7/16" UF | 16mm |
| 12-41200407 | Adapt 4120-04-07 | R 1/4" UF x JIC 7/16" UF | 19mm |
| 12-41200408 | Adapt 4120-04-08 | R 1/4" UF x JIC 1/2" UF | 19mm |
| 12-41200409 | Adapt 4120-04-09 | R 1/4" UF x JIC 9/16" UF | 19mm |
| 12-41200412 | Adapt 4120-04-12 | R 1/4" UF x JIC 3/4" UF | 19mm |
| 12-41200607 | Adapt 4120-06-07 | R 3/8" UF x JIC 7/16" UF | 22mm |
| 12-41200608 | Adapt 4120-06-08 | R 3/8" UF x JIC 1/2" UF | 22mm |
| 12-41200609 | Adapt 4120-06-09 | R 3/8" UF x JIC 9/16" UF | 22mm |
| 12-41200612 | Adapt 4120-06-12 | R 3/8" UF x JIC 3/4" UF | 22mm |
| 12-41200614 | Adapt 4120-06-14 | R 3/8" UF x JIC 7/8" UF | 24mm |
| 12-41200617 | Adapt 4120-06-17 | R 3/8" UF x JIC 1 1/16" UF | 28mm |
| 12-41200807 | Adapt 4120-08-07 | R 1/2" UF x JIC 7/16" UF | 30mm |
| 12-41200808 | Adapt 4120-08-08 | R 1/2" UF x JIC 1/2" UF | 26mm |
| 12-41200809 | Adapt 4120-08-09 | R 1/2" UF x JIC 9/16" UF | 30mm |
| 12-41200812 | Adapt 4120-08-12 | R 1/2" UF x JIC 3/4" UF | 30mm |
| 12-41200814 | Adapt 4120-08-14 | R 1/2" UF x JIC 7/8" UF | 30mm |
| 12-41200817 | Adapt 4120-08-17 | R 1/2" UF x JIC 1 1/16" UF | 30mm |
| 12-41201212 | Adapt 4120-12-12 | R 3/4" UF x JIC 3/4" UF | 36mm |
| 12-41201214 | Adapt 4120-12-14 | R 3/4" UF x JIC 7/8" UF | 36mm |
| 12-41201217 | Adapt 4120-12-17 | R 3/4" UF x JIC 1 1/16" UF | 36mm |
| 12-41201219 | Adapt 4120-12-19 | R 3/4" UF x JIC 1 3/16" UF | 36mm |
| 12-41201221 | Adapt 4120-12-21 | R 3/4" UF x JIC 1 5/16" UF | 35mm |
| 12-41201614 | Adapt 4120-16-14 | R 1" UF x JIC 7/8" UF | 41mm |
| 12-41201617 | Adapt 4120-16-17 | R 1" UF x JIC 1 1/16" UF | 41mm |
| 12-41201621 | Adapt 4120-16-21 | R 1" UF x JIC 1 5/16" UF | 41mm |
| 12-41201626 | Adapt 4120-16-26 | R 1" UF x JIC 1 5/8" UF | 41mm |
| 12-41202026 | Adapt 4120-20-26 | R 1 1/4" UF x JIC 1 5/8" UF | 50mm |
